Sensor for Water Dispenser
Sensor for Water Dispenser
PROJECT DETAILS
COUNTRY
United Arab Emirates
LOCATION
Dubai
DATE
2022
Client Request
The client requested the development of a sensor system to control the water dispensing valve for five units, with the ability to detect the presence of a hand or container and turn on the UV light of the dispenser simultaneously.
Challenges
•Designing a sensor system that can accurately detect the presence of a hand or container.
•Choosing materials that are durable and suitable for use in a water dispenser.
•Ensuring the electrical system is safe and compatible with the dispenser's power supply.
•Completing the project within a tight deadline of three days.
Solution
The FSE automation team developed a sensor system using an AUTONICS BRQM400-DDTA optical sensor, a Meanwell 24-volt power supply, and a relay. The sensor system is designed to detect the presence of a hand or container and send a command to the electric valve to open the solid valve, while also turning on the UV light of the dispenser. Custom holders were made for the sensors to fit each dispenser unit. The system was designed to be durable and suitable for use in a water dispenser. The project was completed within the tight deadline of three days.
Products Used In This Project

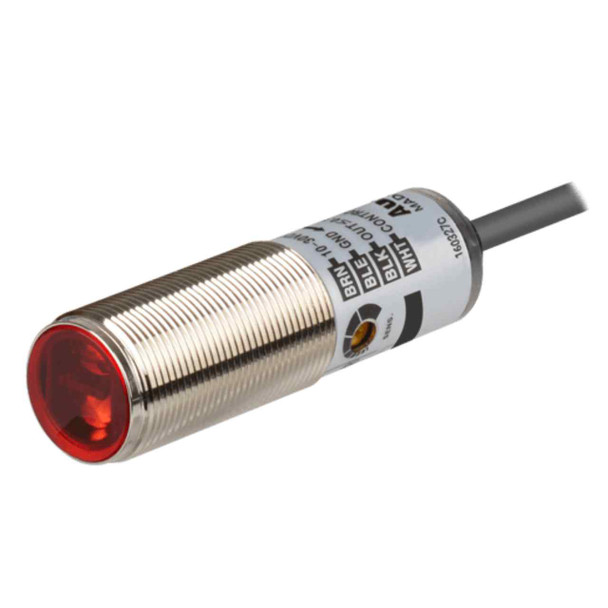

Photo Sensor 100 mm Sensing Distance, NPN, Cable Type - BRQM100-DDTA
The Autonics photoelectric sensor BRQM100-DDTA is Diffuse reflective sensing type, comes in a cylindrical shape, sensing distance of 100mm, Response time of Max. 1ms and cylindrical installation. The standard cylindrical photo sensor can be used in diverse applications requiring non-contact detection of Opaque , Translucent material.
