Emirate of Sharjah Project
Temperature control of a server room via internet
PROJECT DETAILS
COUNTRY
UAE
LOCATION
United Arab Emirates - Emirate of Sharjah Project
DATE
2022/06/17
Client Request
Challenges
Solution
In this project, we decided to use the Fibaro home automation system, which is a product of Poland, and to control the temperature with industrial thermostats from Samwon-eng, South Korea.
In a panel box, we placed two temperature controllers from Samwon-eng. These controllers simultaneously display the current temperature and activate the cooling systems.
Now it was time to install a system that can activate the cooling systems alternately and during the time intervals that we want. For this purpose, we used Fibaro smart switches and in the Fibaro software, we programmed which switch should switch at which time and on which days, and based on this, the switches started working.
The third step was to get the alarm trigger from the output of the controllers to a smart device called an Implant from the Fibaro company, and with this wiring, we were able to monitor the moment when the alarm relays are activated in the Fibaro software. Finally, with some simple programming in the Fibaro software, this feature was provided. We made it possible to send a warning message to all specified emails and specified mobile phones when the high temperature alarm signal is received from the controllers.
Products Used In This Project
Fibaro | Smart Implant FGBS-222

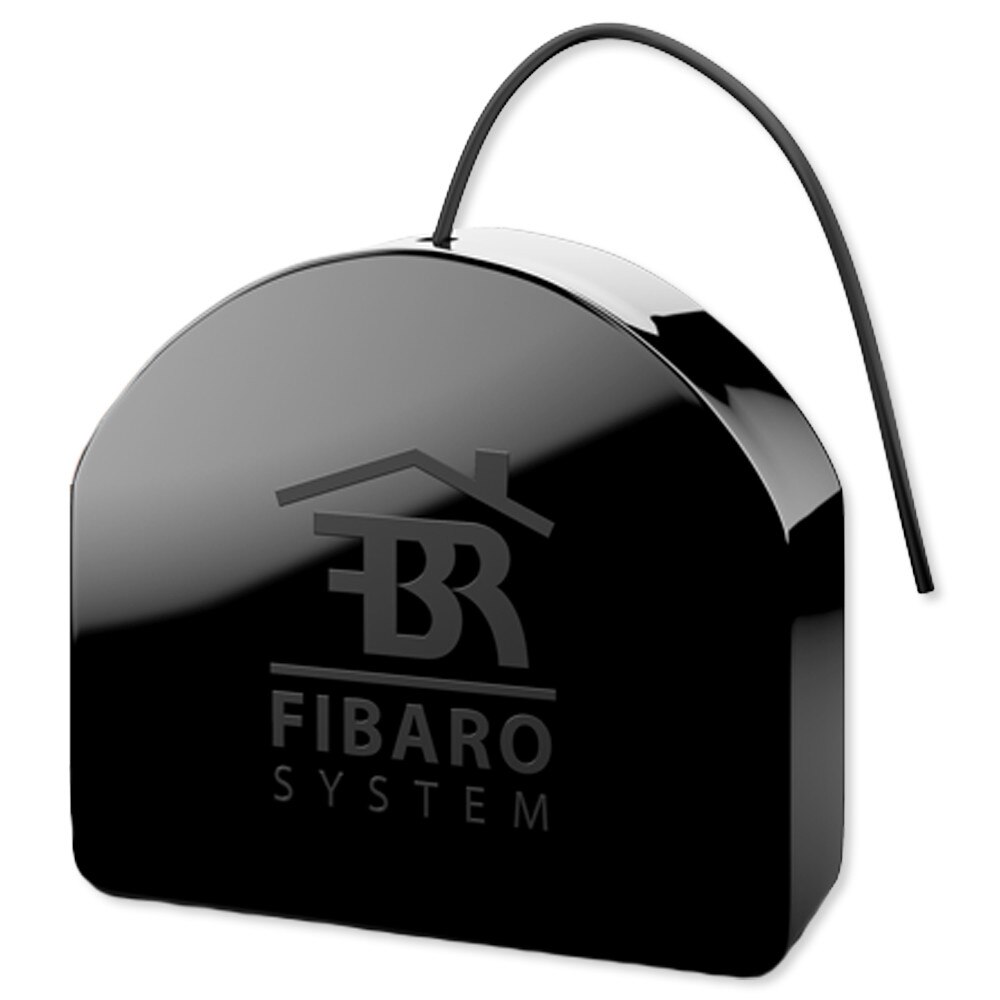

Fibaro | FGS-223 Smart Switch
Fibaro | Main Center Home Center 3 light
